Dettagli dei prodotti

Casa > prodotti >

Treccia a fibra ottica

SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel

Tutte le categorie

Cavo a fibre ottiche corazzato all'aperto

Fibra blindata per interni e esterni

Cavo in fibra ottica per esterni

Cavo a fibra ottica per interni

Corde di patch in fibra ottica

SM MM LC/UPC Fiber Optic Pigtail Single Mode For ODF Patch Panel

Marchio:	HXCOWO
Model Number:	HX-WX1
MOQ:	100 pezzi
prezzo:	negotiable
Dettagli dell' imballaggio:	OPP bag + scatola di cartone da esportazione

Informazione dettagliata

Descrizione di prodotto

Informazione dettagliata

Luogo di origine:

Guangdong, Cina

Certificazione:

CE RoHS FCC

Tipo:

Trecce della fibra

utilizzo:

Tempo di garanzia:

1 anno

Rete:

Wireless LAN, Wi-Fi, 4G, 3G

Nome del prodotto:

Treccia a fibra ottica

Applicazione:

Colore:

Requisiti del cliente

Tipo di fibra:

SM MM

Tipo di connettore:

SC FC LC ST

Lunghezza d'onda:

850 nm/1310 nm/1550 nm

Materiale:

PVC LSZH

Distanze:

Lunghezze personalizzate ((1m/2m/3m...+1

Servizio:

Il ODM dell'OEM accetta

Port:

Shenzhen

Capacità di alimentazione:

1500000 pezzo/pezzi per Mese

Evidenziare:

LC/UPC Fiber Optic Pigtail

Fiber Optic Pigtail Single Mode

ODF Fiber Optic Pigtail

Descrizione di prodotto

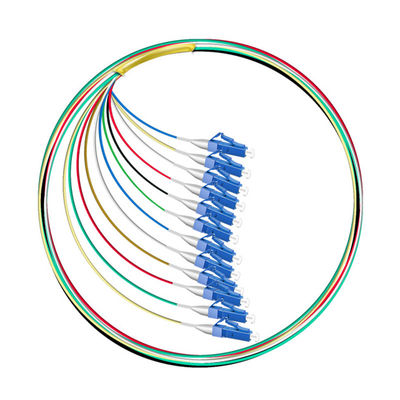

FTTX HXCOWO 12 Standard Color LC/UPC Fiber Optic Pigtail for ODF Patch Panel

PRODUCT PARAMETERS
Insertion loss	Singlemode	PC≤ 0.3dB	UPC≤ 0.2dB	APC ≤ 0.18dB
Insertion loss		Multimode	PC≤ 0.5dB	UPC≤ 0.3dB	APC ≤ 0.3dB
Return loss	Singlemode	PC≥ 48dB	UPC≥ 50dB	APC ≥ 60dB
Return loss		Multimode	PC≥ 25dB	UPC≥ 45dB	APC ≥ 50dB
Reaptability	≤ 0.1db
Changeability	≤ 0.2dB
Working Temperature	-40 to +80° C
Durability	1000 times
Sustain Tension	≥ 100N
Fiber	9/125um , 50/125um, 62.5/125um, etc.
Diameter	0.9mm 2.0mm 3.0mm, etc.
Cable Material	PVC, LSZH
Cores	Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, etc

PRODUCT DESCRIPTION

HIGH QUALITY SINGLE MODE BUNDLE FIBER PIGTAIL

Efficient transmission

Low loss

Resistance to pulling

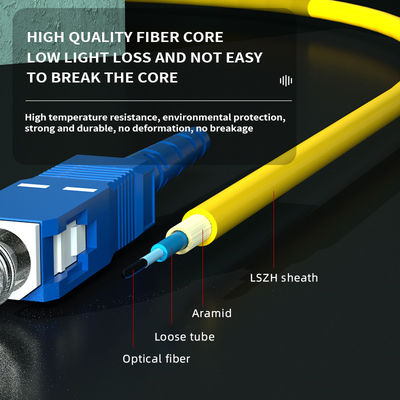

HIGH QUALITY FIBER CORE

LOW LIGHT LOSS AND NOT EASY TO BREAK THE CORE

High temperature resistance, environmental protection, strong and durable, no deformation, no breakage

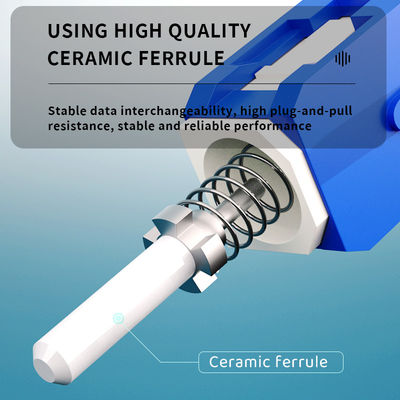

USING HIGH QUALITY CERAMIC FERRULE

Stable data interchangeability, high plug-and-pull resistance, stable and reliable performance

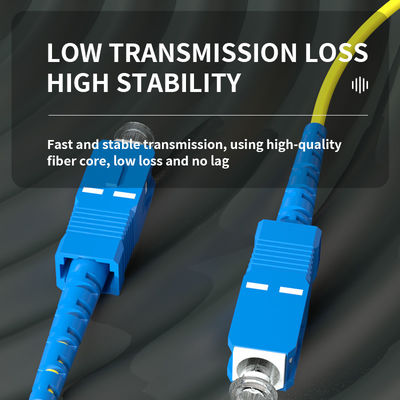

LOW TRANSMISSION LOSS

HIGH STABILITY

Fast and stable transmission, using high-quality fiber core, low loss and no lag

STRONG TENSILE/BENDING RESISTANCE

The optical cable has good tensile resistance, twist resistance and bending resistance, and can be installed in a compact space

MADE OF ENVIRONMENTALLY FRIENDLY MATERIAL LSZH

Wear-resistant and corrosion-resistant, environmentally friendly and odor-free

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
